Airlie Essential - Aluminium Sliding Doors

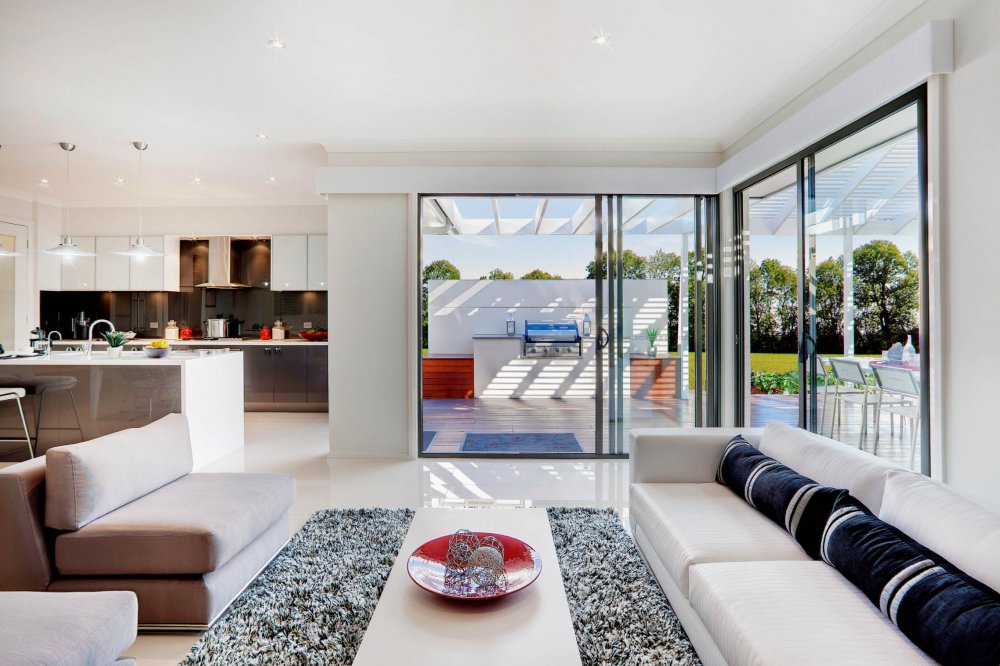

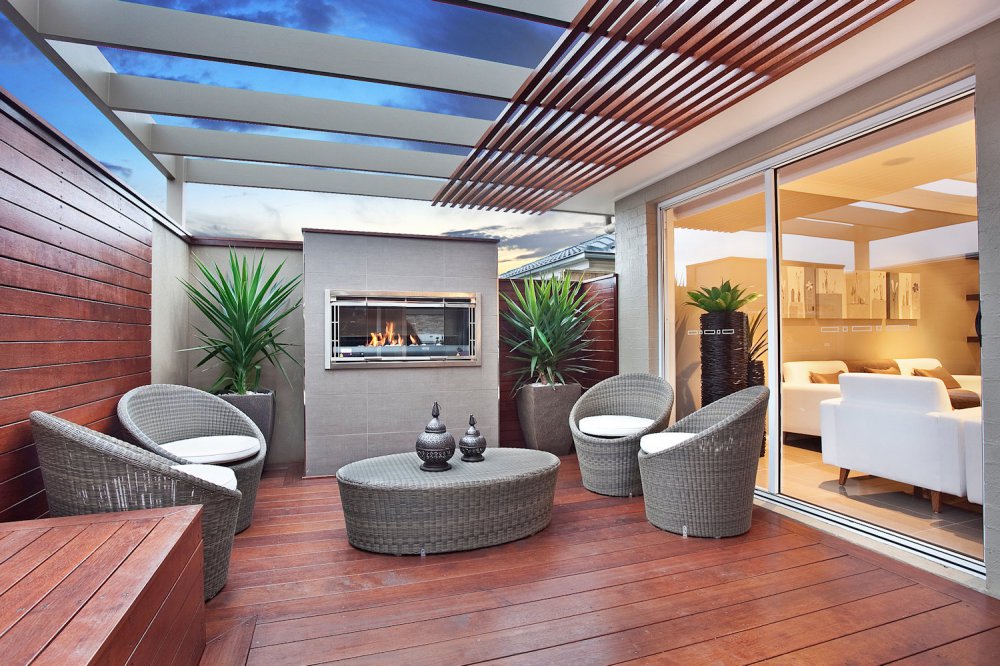

Launch Gallery Essential 3 panel stacker and 2 panel door (flyscreens not shown)
Overview

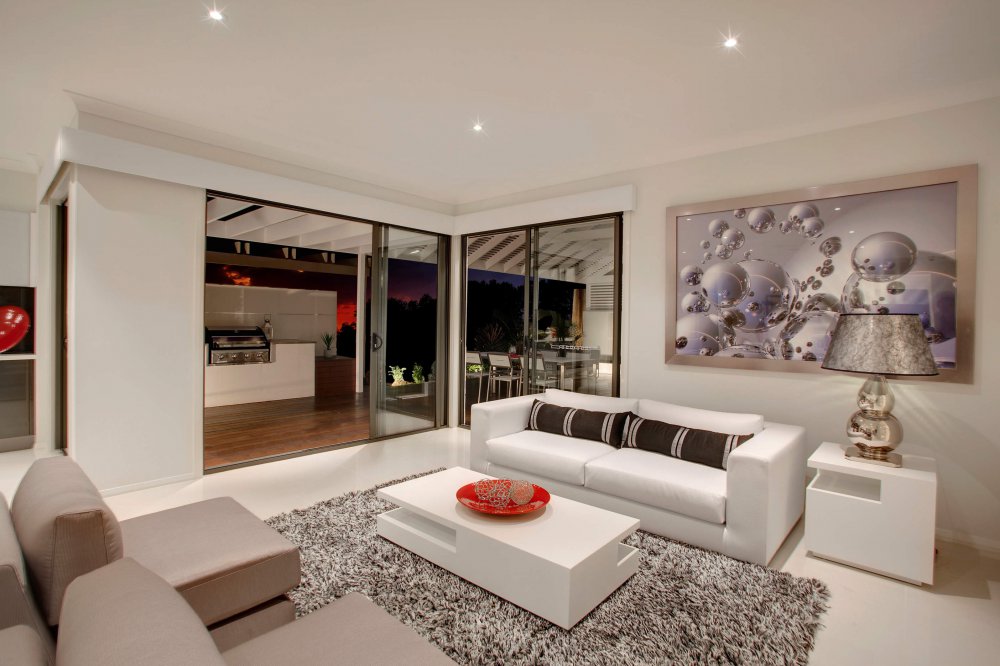

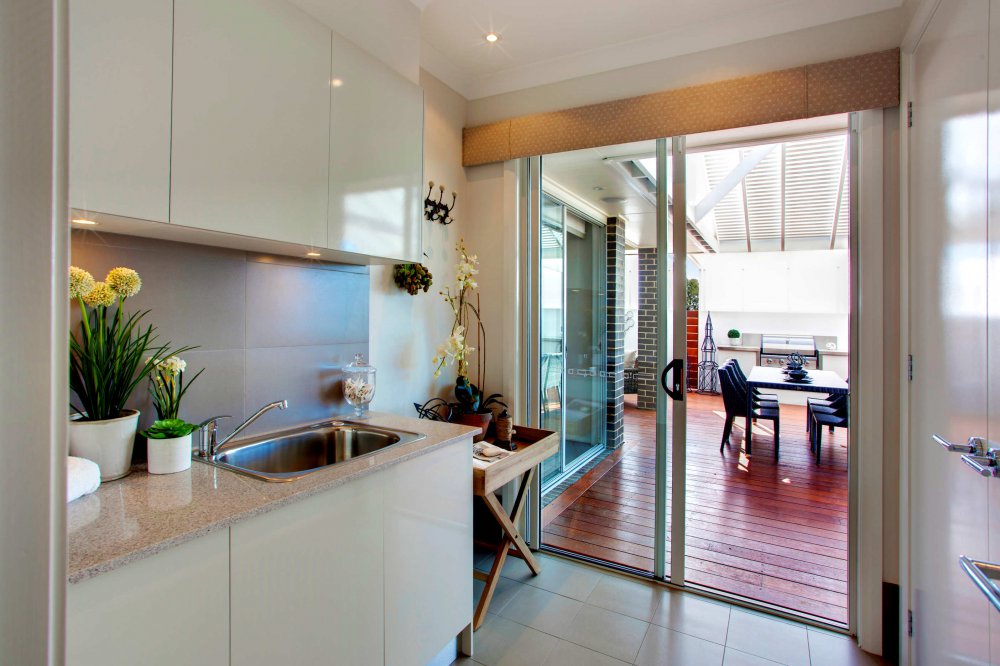

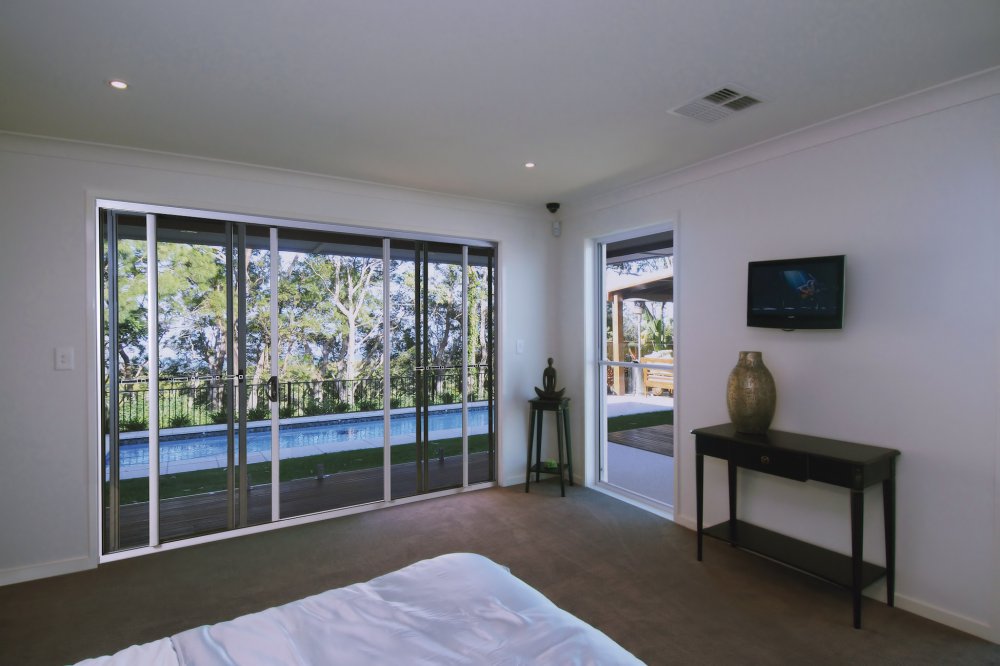

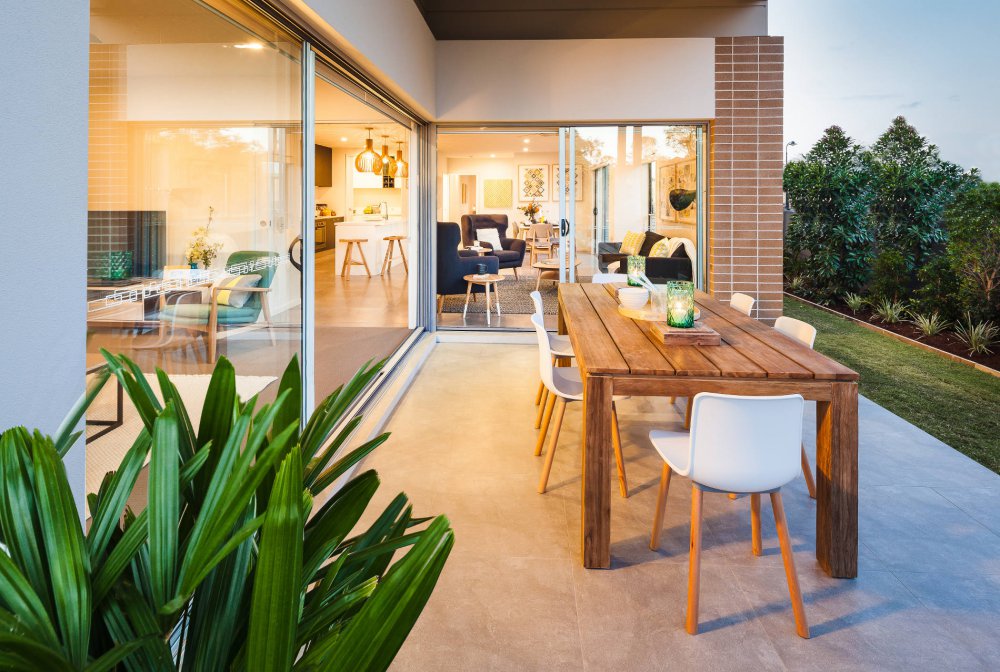

Enhance your home with Statesman's Airlie Essential single glazed sliding and stacker doors. Utilising 80mm and 140mm wide frames respectively, as well as uncluttered lines and large glass areas, Airlie Essential doors bring optimum natural light and a sense of space into any room. Through their wide openings, Airlie Essential sliding and stacker doors can open your home to the great outdoors, giving you easy access to patios, sundecks, courtyards and gardens. Superior assembly, materials and fittings ensures ease of use, long life and excellent security. Available in a wide range of sizes and configurations, Airlie Essential doors are suitable for both contemporary and traditional designs. For double glazed options, see our Airlie Signature Sliding Doors.

Features & Benefits

Airlie Essential

  • 50mm high x 80mm or 140mm wide sill
  • Clean, uncluttered profile for a modern, streamlined look
  • Santoprene carbon seals for improved sealing and UV stability
  • Enhanced acoustic and energy performance

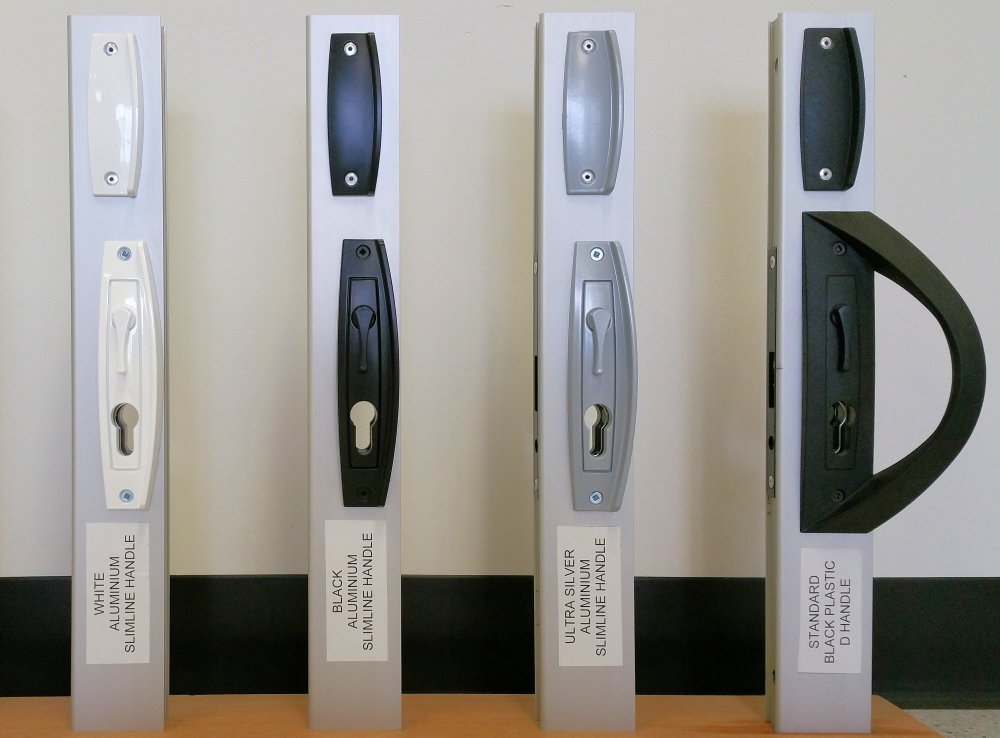

  • New handle with mortice lock for superior security in a range of colours
  • Single glazed only (For double glazed options, see our Airlie Signature Sliding Doors)
  • Tested to Australian standards (AS1288, AS2047)
Options

Airlie Essential

  • Accessibility sill for wheelchair access (sliding door only)
  • Flyscreen door and security door options
  • Available with sidelites & hi-lites
  • Optional 40mm external fin / face fixing adaptor for flush mounting to exterior wall cladding (Not available on 140mm frame stacker doors)

Performance Parameters (inclusive)

Airlie Essential

  • Frame width 80mm (2, 3 or 4 panels) & 140mm (3 or 6 panels - stacking)
  • Maximum door height 2450mm
  • Maximum door width 6246mm
  • Maximum panel width 1350mm
  • Maximum panel weight 50kg
  • Maximum water rating 300pa
  • Maximum wind rating N4 (as per AS4055 - Wind loads for housing)
  • Maximum glass thickness (single glazed) 6.76mm (double glazing N/A)
  • Maximum acoustic rating Rw30
  • Subject to design limitations

Airlie Signature - Aluminium Sliding Doors

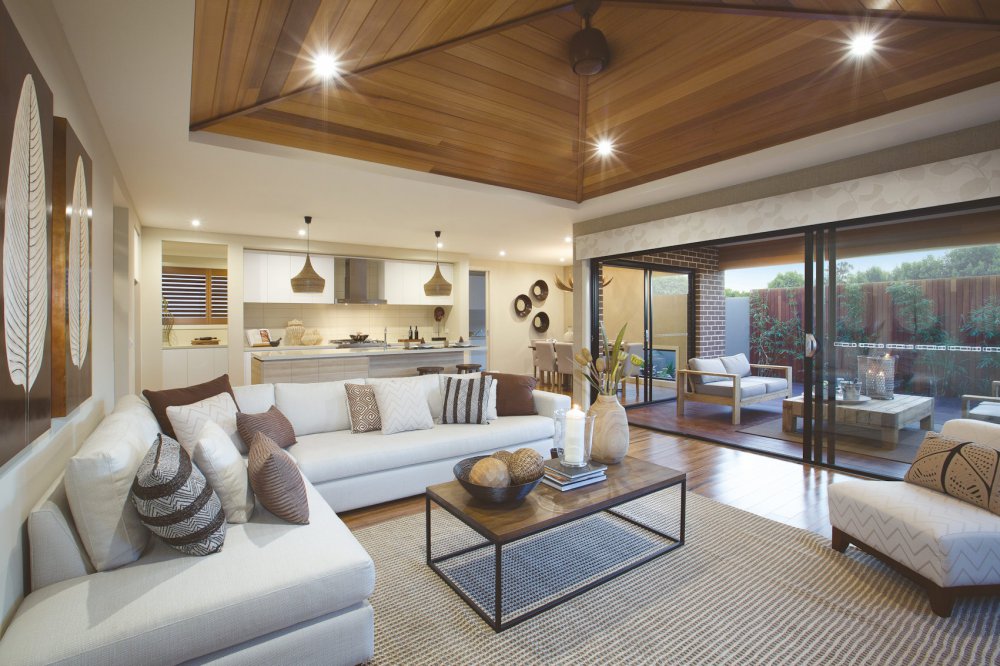

Launch Gallery Signature 90 degree corner stacker door incl. flyscreens
Overview

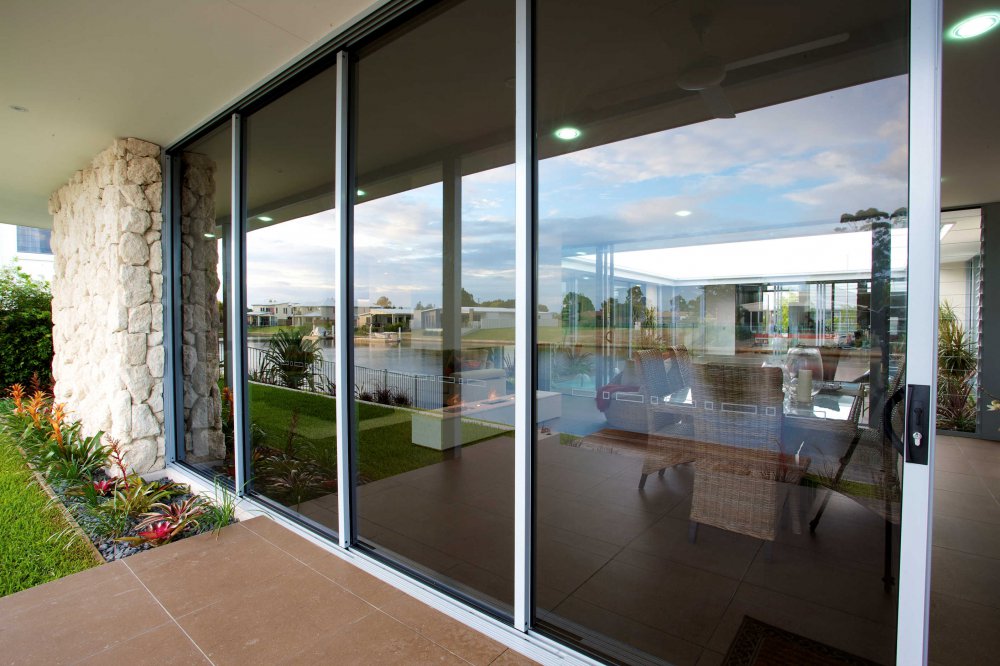

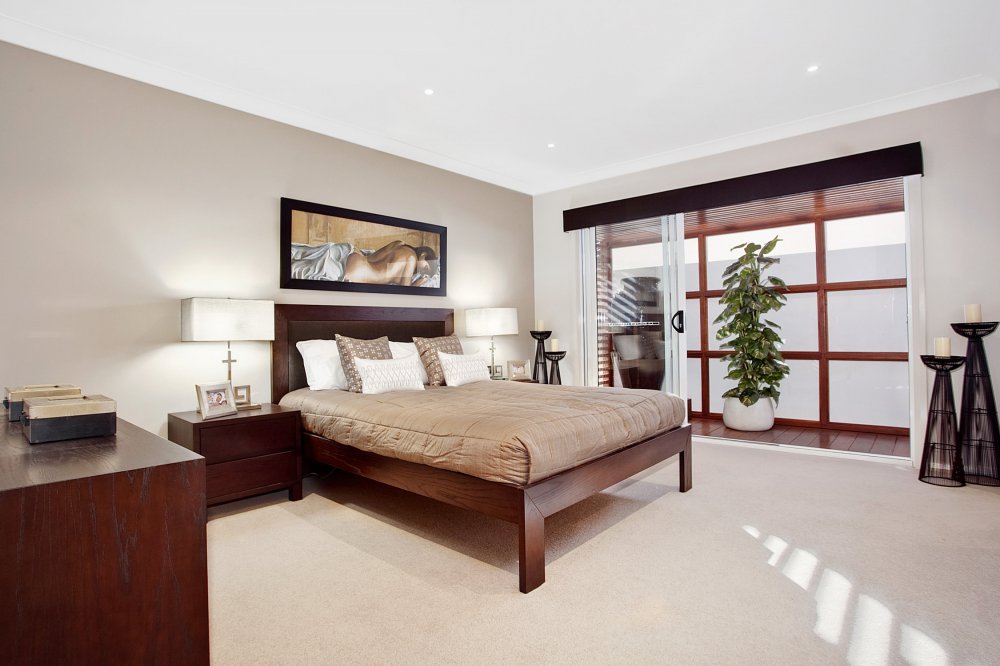

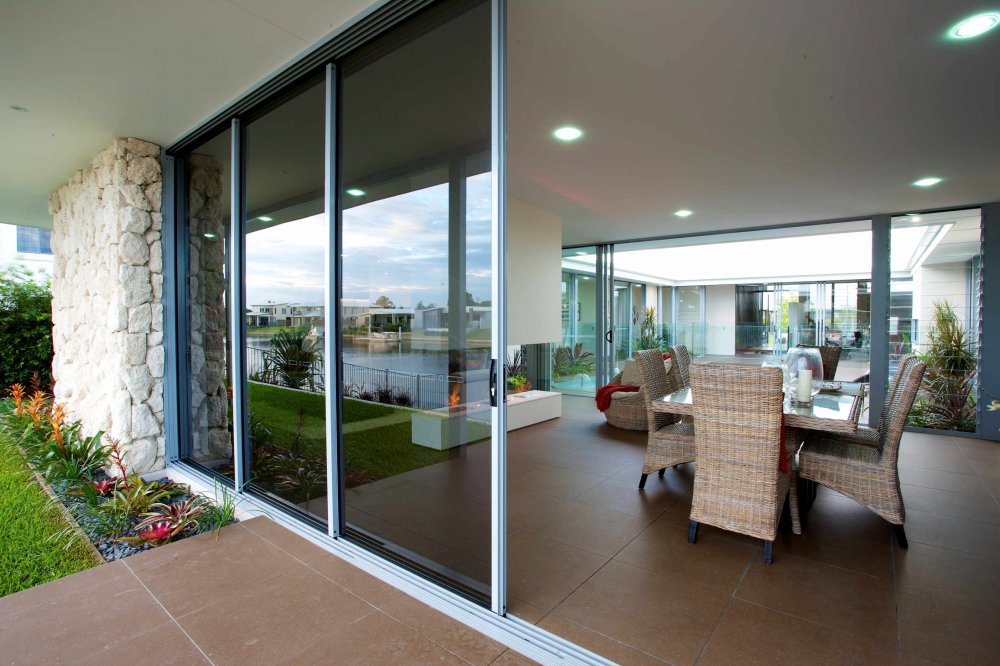

Airlie Signature single or double glazed sliding and stacker doors have been designed in response to emerging architectural trends and performance requirements. These premium doors offer superior features that set them apart from competitors' products for durability, performance and design excellence. With 100mm and 166mm wide frames respectively, a maximum height of 2850mm with corner stacking configurations available (90o and 135o) and cavity stacking (hidden panels), Airlie Signature doors allow expansive openings to be achieved. Unlike it's Essential cousin, the sill height of the Airlie Signature sliding door is consistent inside to out. Designed to let exterior decking marry up to internal floor heights with only the exposed sliding tracks in between for a flush, non trip sill, and also ensures flyscreen doors are not accidentally kicked off their track. Combine this with superior weather, acoustic and energy capabilities, and double glazing options, Airlie Signature sliding and stacker doors open up a whole new world of design and performance options for discerning renovators, homeowners, builders and designers.

Features & Benefits

Airlie Signature

  • 50mm high x 100mm or 166mm wide sill
  • Double or single glazed options
  • Clean, uncluttered profile for a modern, streamlined look
  • Non trip hazard sill, when flush fitted between internal and external flooring / decking (Sill drainage is required if door is exposed to weather - flooring must not protrude higher than door sill!)
  • Santoprene carbon seals for improved sealing and UV stability

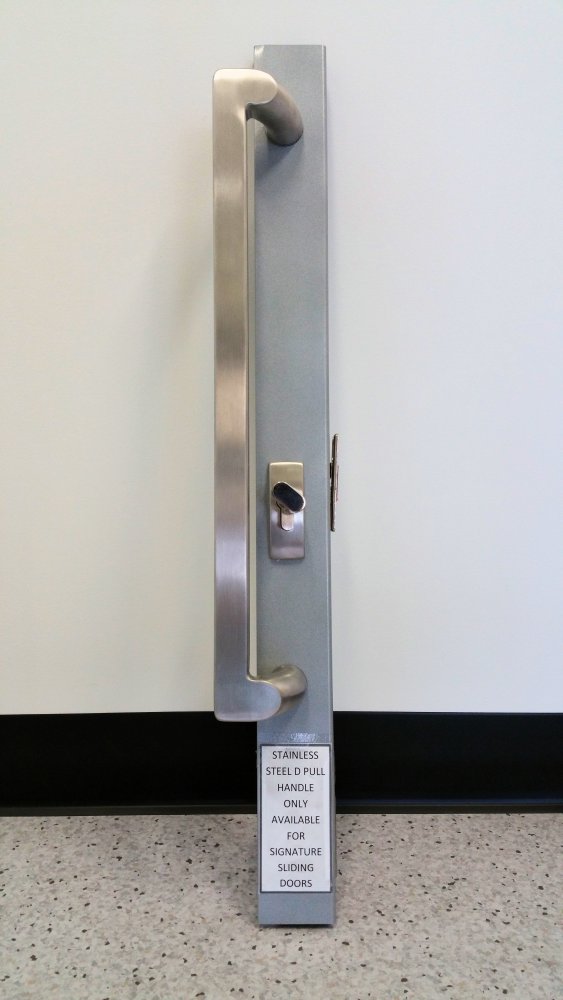

  • New handle with mortice lock for superior security in a range of colours
  • Tested to Australian standards (AS1288, AS2047)
Options

Airlie Signature

  • Available with sidelites or hilites (subject to confirmation of structural performance)
  • 19mm or 24mm framed flyscreen or security door options

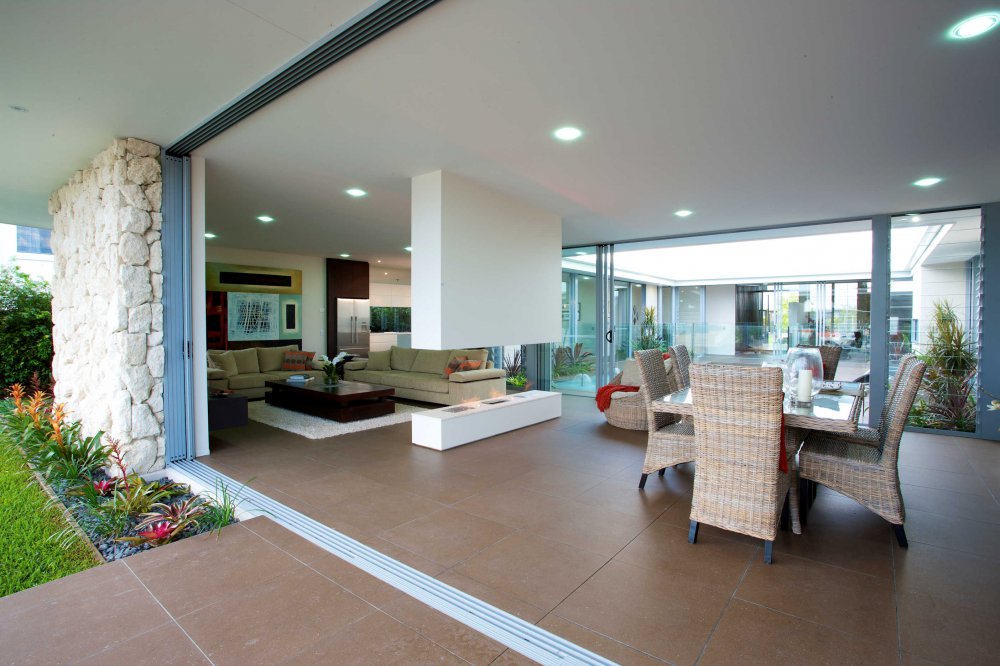

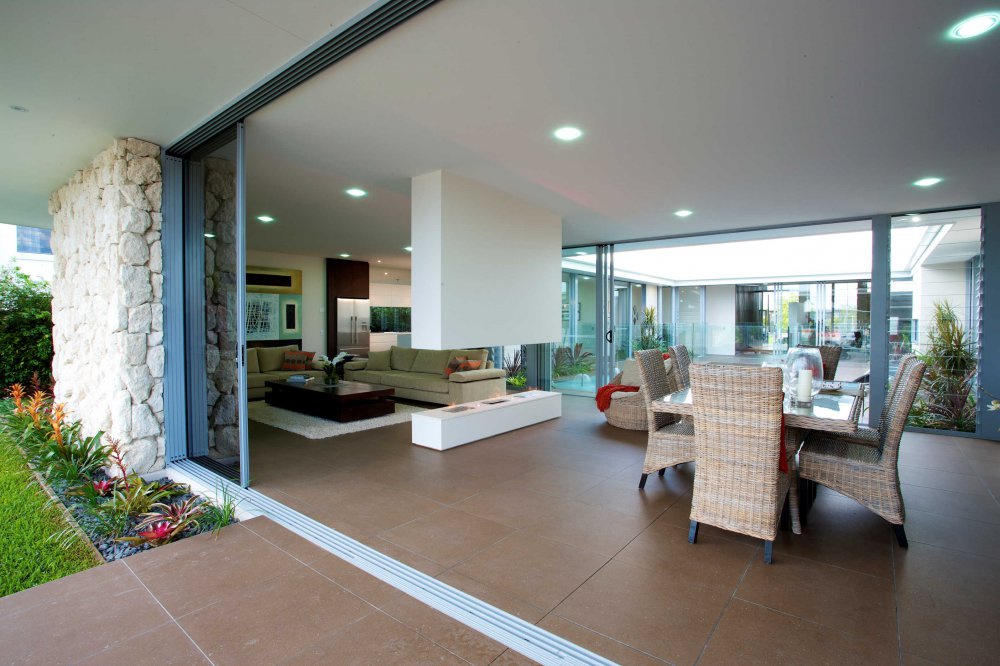

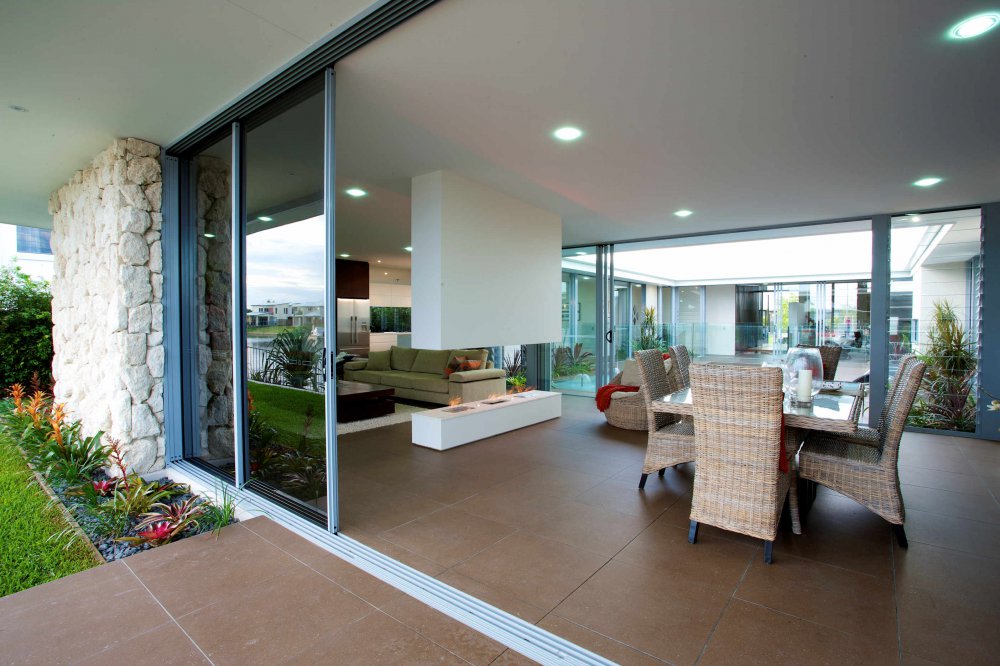

  • Cavity stacker - hides panels in wall (structural modifications required - carried out by client / builder)
  • Upgrade to 600pa sill for improved performance
  • Accessibility sill for wheelchair access (sliding door only)
  • Single glazed up to 12.76mm
  • Double glazed up to 20mm
  • Optional 40mm external fin / face fixing adaptor for flush mounting to exterior wall cladding (Not available on 166mm frame)
Performance Parameters (inclusive)

Airlie Signature

  • Frame width 100mm  & 166mm
  • Maximum door height 2850mm
  • Maximum door width 6246mm
  • Maximum panel width 1350mm
  • Maximum panel weight 100kg
  • Maximum water rating Standard sill = 360pa
  • High performance sill = 600pa*
  • Maximum wind rating N6 (as per AS4055  Wind loads for housing)
  • Maximum glass thickness 12.76mm (single glazed) / 20mm (double glazed)
  • Maximum acoustic rating Rw35* (single glazed) (estimate only)
  • * Does not apply to 166mm frame

All Airlie Doors come with Statesman's 7 Year Warranty* and a 3 Year Moving Part Guarantee * Workmanship and Material - Subject to standard warranty terms and conditions.

Note: Subject to local variations, climate requirements, and confirmation of structural performance.
