Essential Sliding Windows

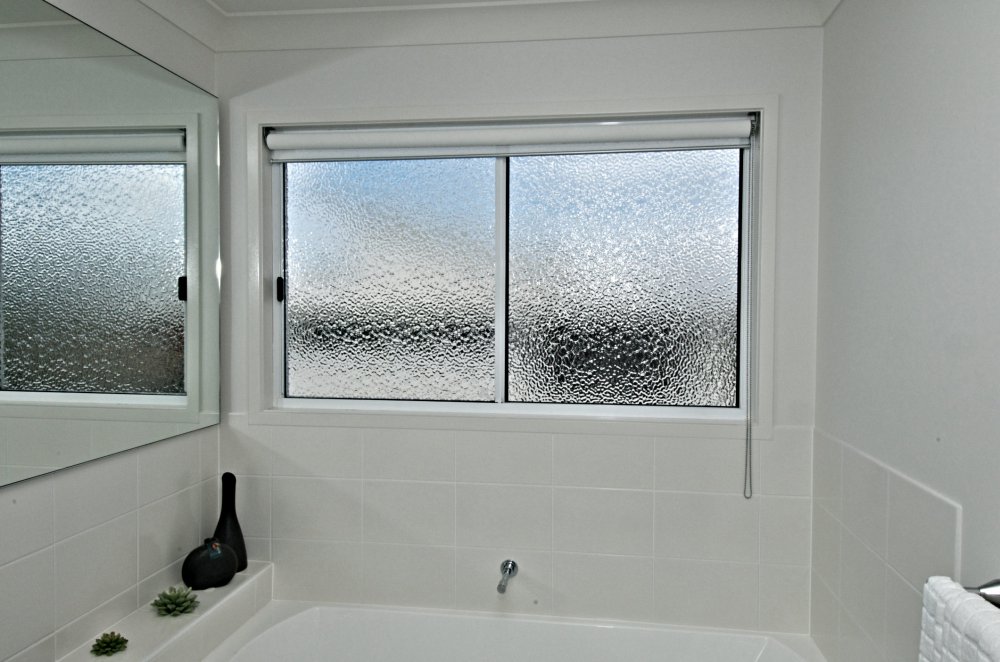

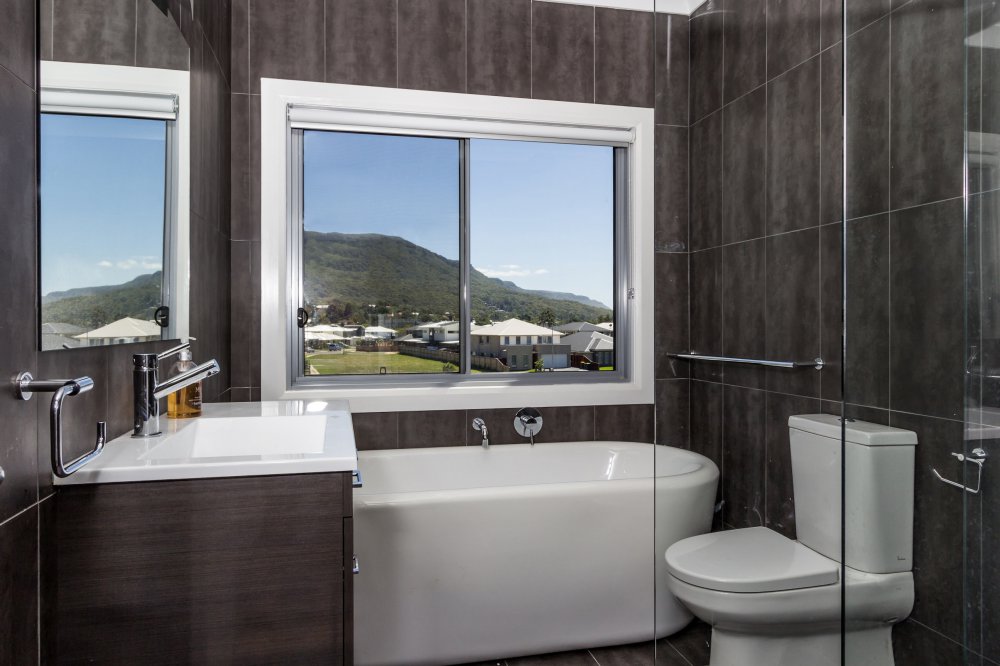

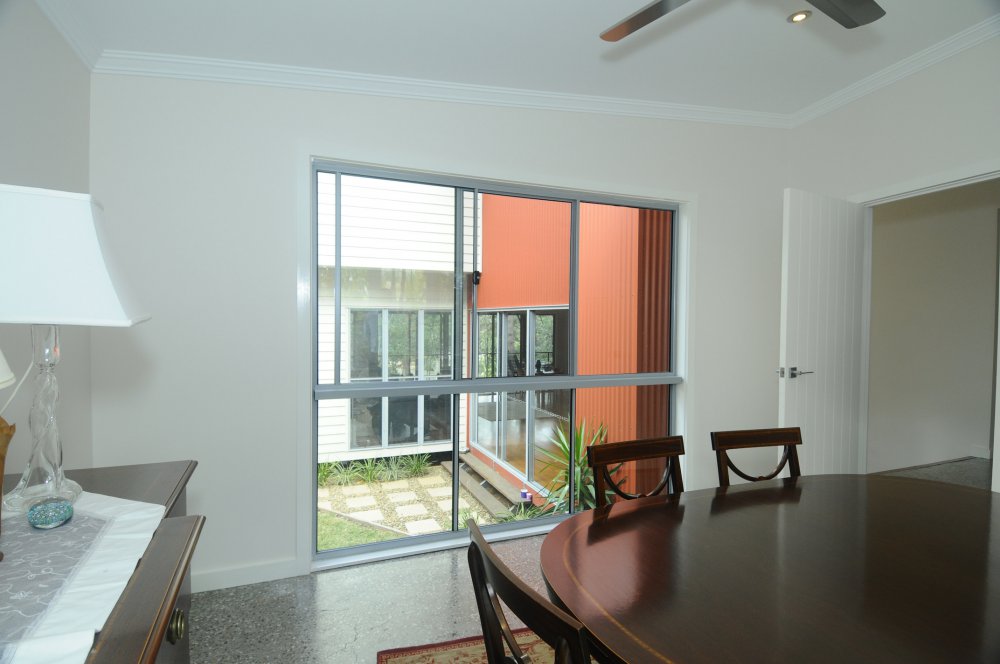

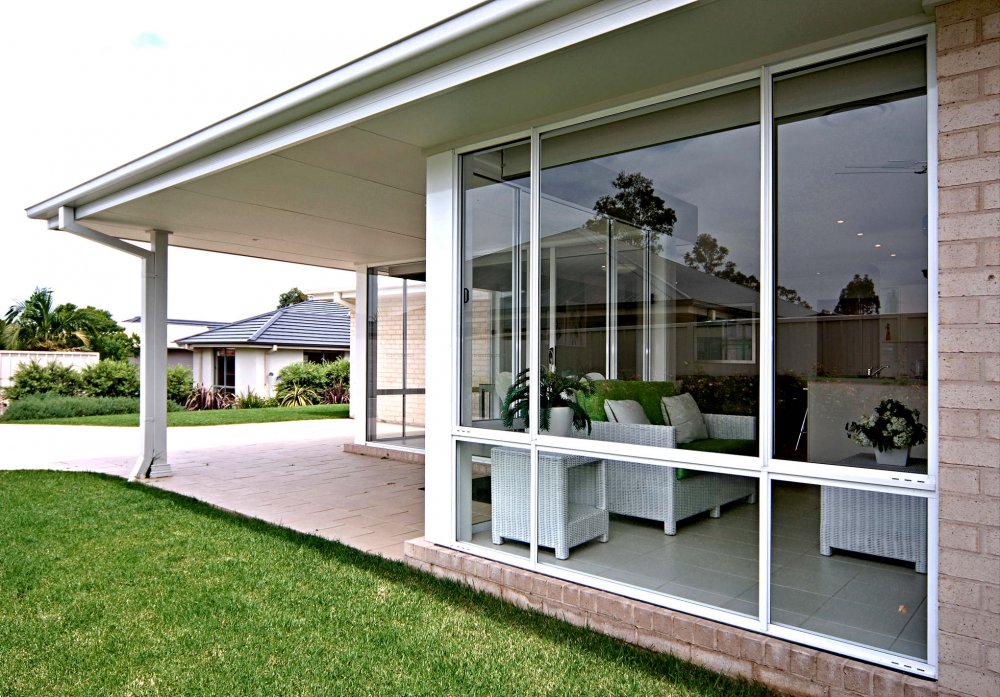

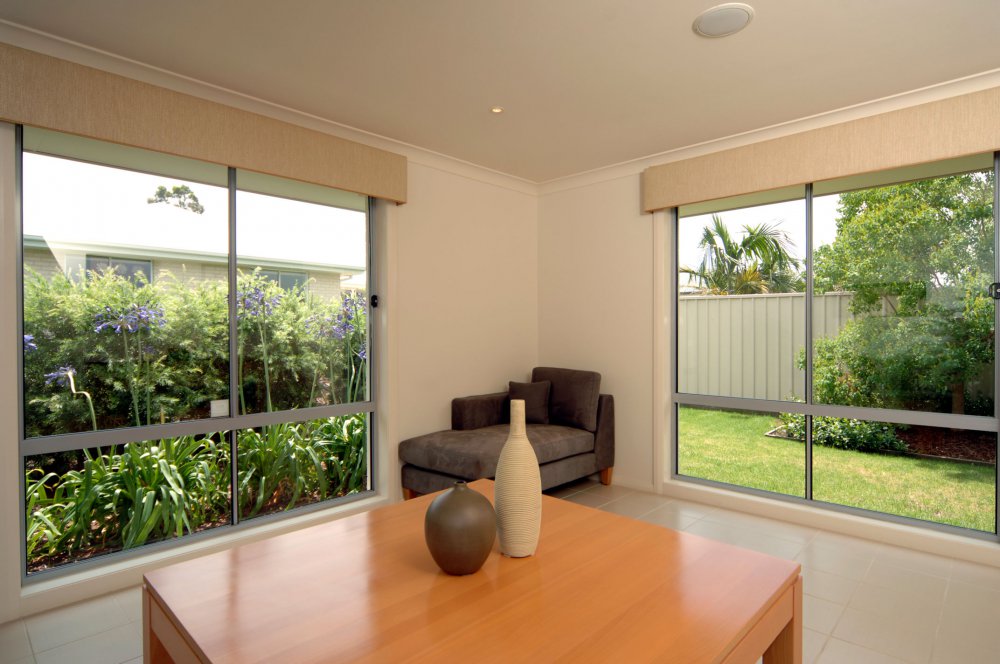

Launch Gallery Essential Sliding Windows with transom low lites (Flyscreens not shown)
Overview

Statesman's single glazed Essential sliding windows combine 52mm wide frames with simple, classic design & easy operation. Sliding windows have one or more sashes sliding horizontally providing fully adjustable ventilation for greater energy efficiency & comfort. The low force sliding system provides a smooth & quiet operation that requires little maintenance. The sliding window is a reliable choice for design flexibility & can be combined with fixed panels. Sliding windows can be used to enhance a building's characteristics with a simple, economical design. The perfect choice for the budget conscious.

Features & Benefits

​Essential Sliding Window

  • Economical & simple design for the budget conscious
  • Single glazed only (for double glazed - see Signature range below)
  • Clean finish & appearance thanks to concealed fixings
  • Ideal in servery situations between kitchen & outside entertainment areas
  • 52mm wide frame makes cleaning a breeze - most vacuum heads fit easily inside the window track
  • Integrated insect, safety & security screen options
  • Adjustable latch height position with locking option
  • Optional vent locks allow the window to be secured while partially open for ventilation or keyed latches for locking shut only
  • Compatible with most cladding systems due to the location of building fins
  • Optional 20mm or 40mm external fin / face fixing adaptor for flush mounting to exterior wall cladding
  • Tested to Australian standards
Performance Parameters

​Essential Sliding Window

  • Frame Size 52mm
  • Maximum Height 1600mm (without low lites)
  • Larger height subject to actual design limitations*
  • Maximum Width subject to actual design limitations*
  • Maximum Panel Width 1500mm
  • Maximum Panel Weight 24kgs
  • Maximum Water Rating 600Pa
  • Maximum Wind Rating 4500Pa ULS
  • Maximum Acoustic Rating Rw29
  • Maximum Glass Thickness (single glazed) 6.76mm
  • Maximum Bushfire Attack Level BAL 40
  • *all sizes subject to design limits

Signature Sliding Windows

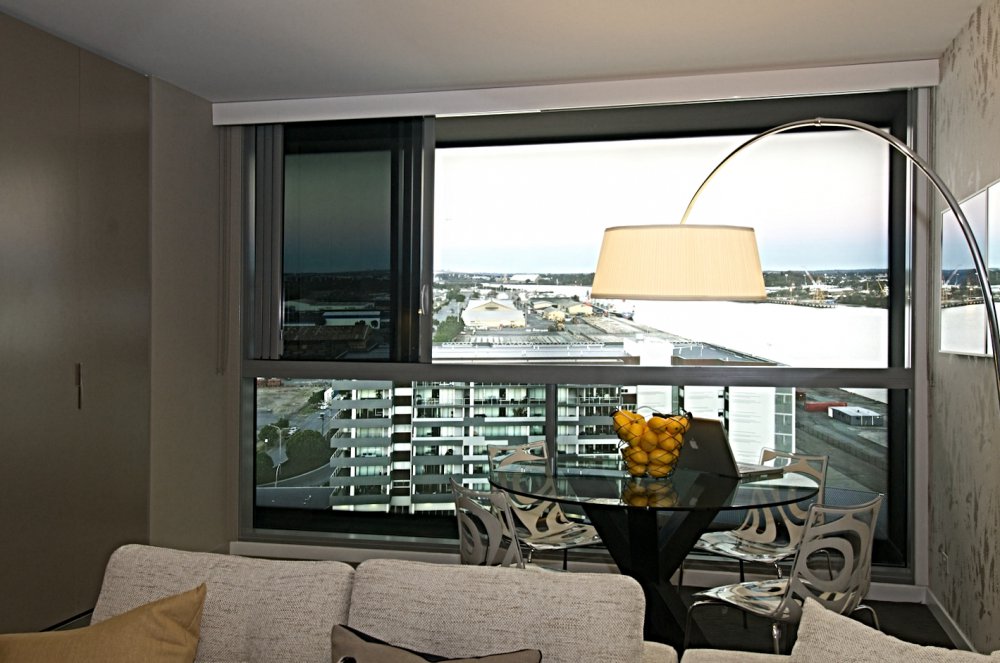

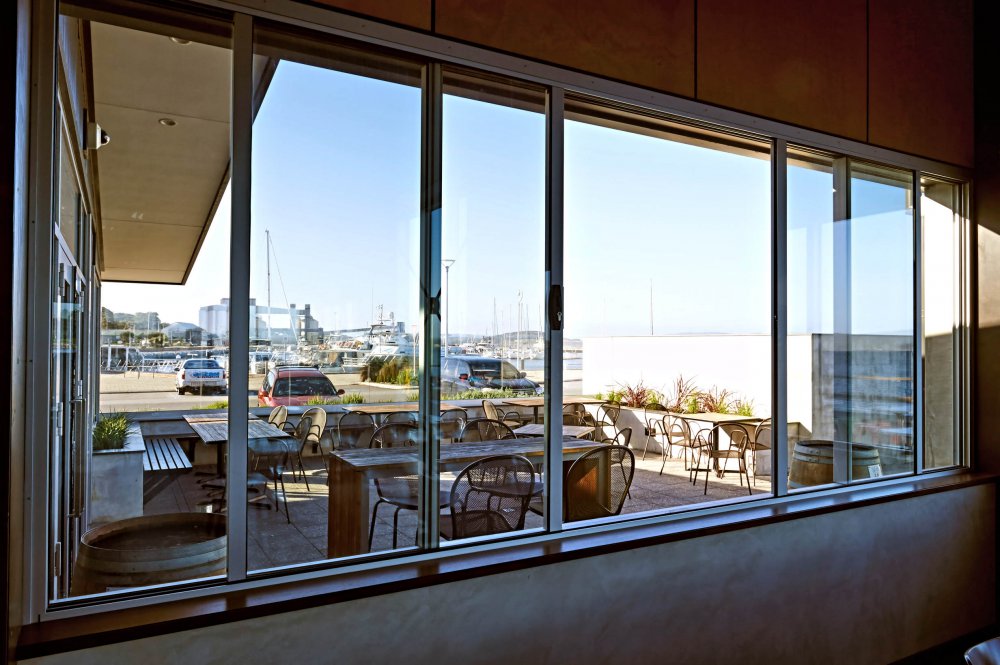

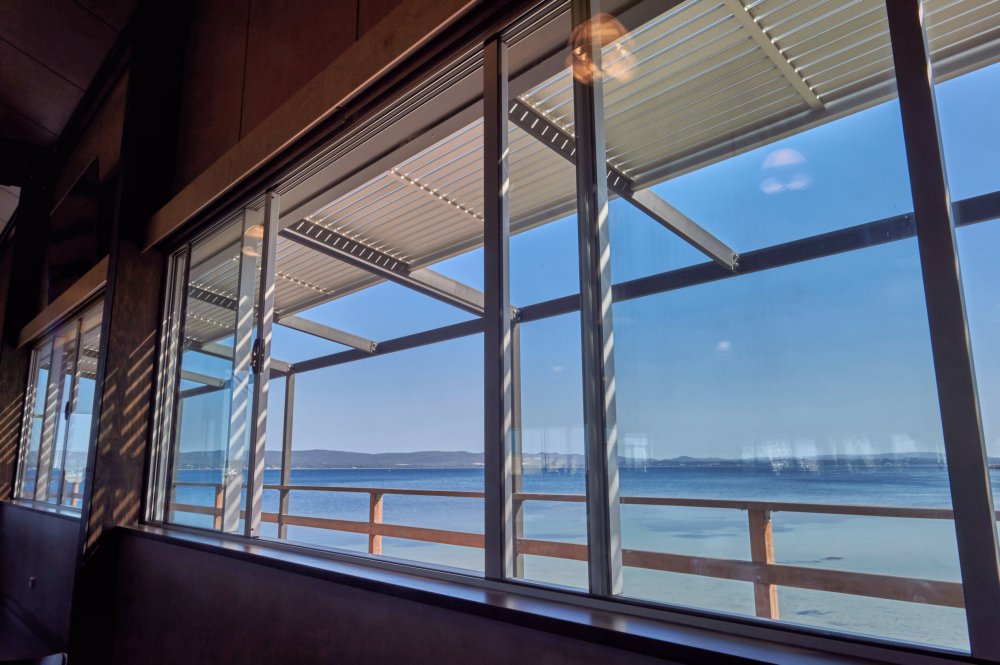

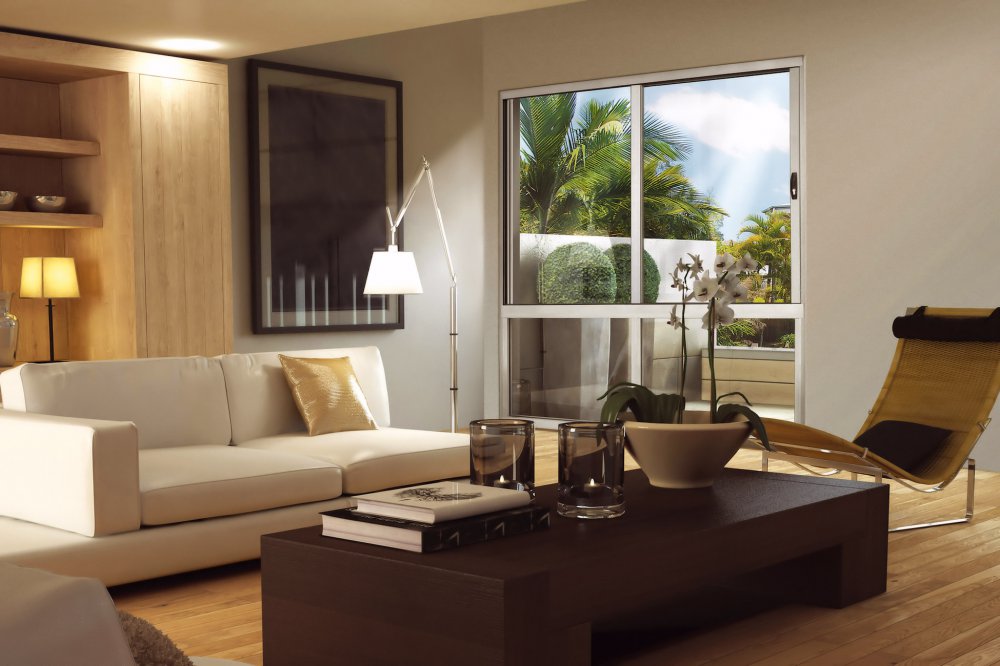

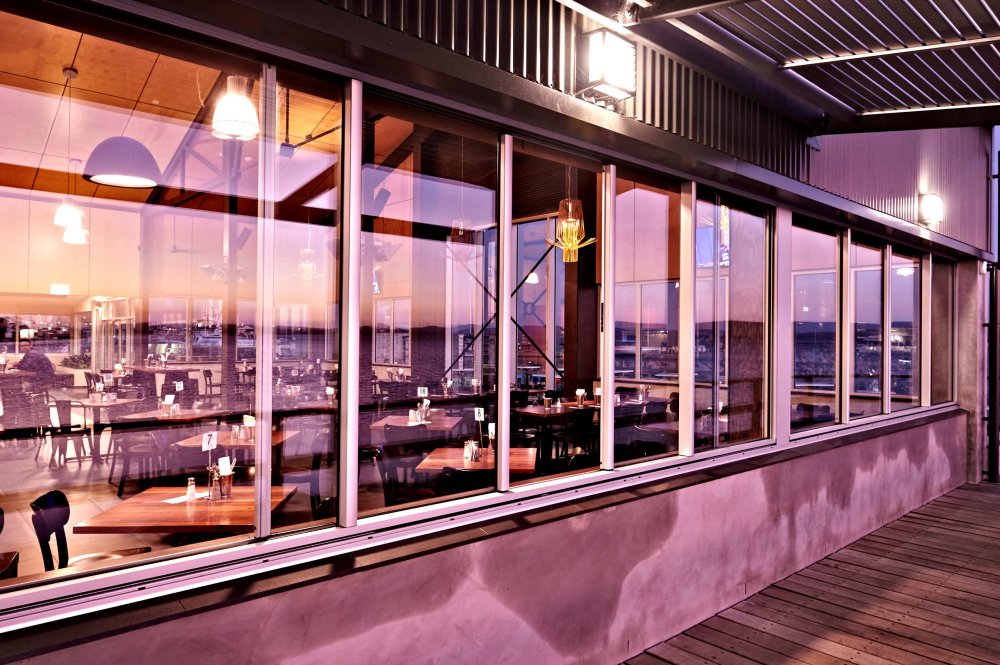

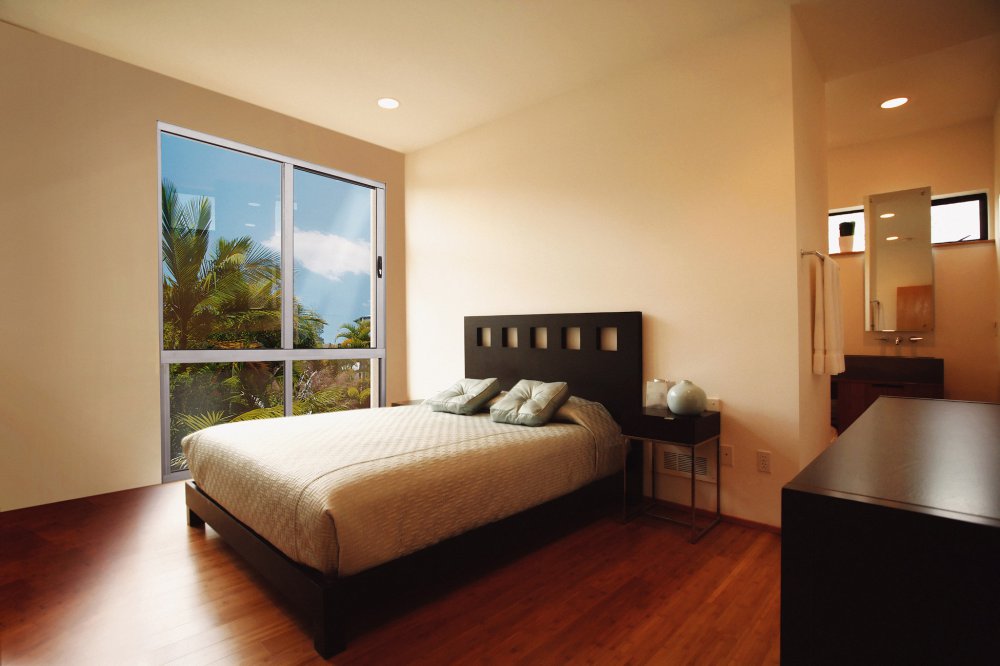

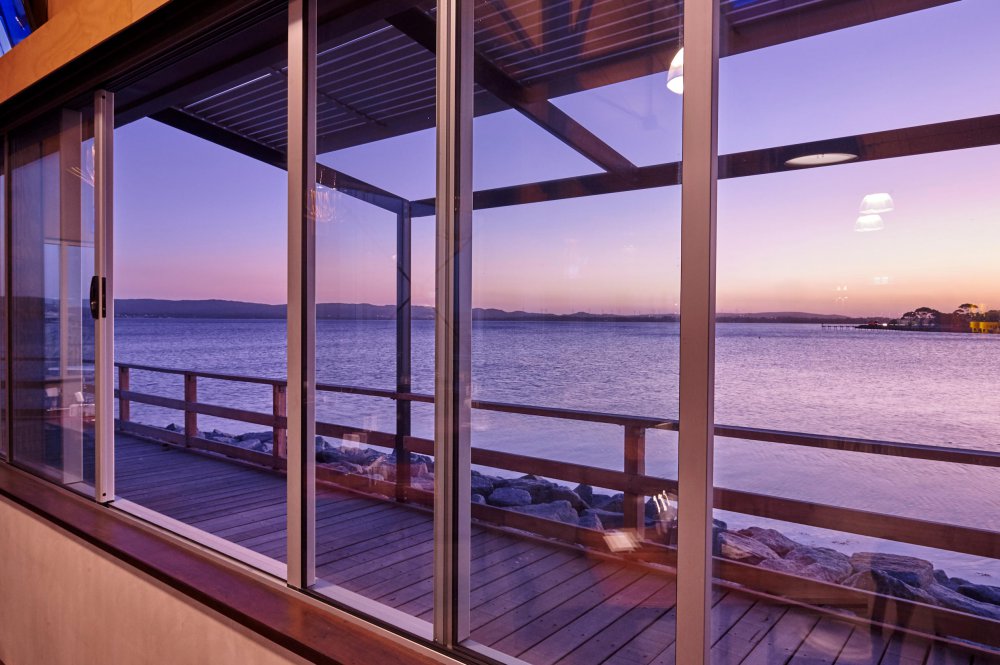

Launch Gallery Signature Sliding Window with transom
Overview

Statesman's Signature sliding windows use a premium 67mm and/or 100mm wide "semi-commercial" frame,  with a simple, classic design and easy operation.  Sliding windows have one or more sashes sliding horizontally, providing fully adjustable ventilation for greater energy efficiency and comfort. The double glazing capabilities and low force sliding system provide a smooth and quiet operation that requires little maintenance. The 100mm window is available with a sliding servery screen, ideal for entertaining and parties where you need to pass food and drink through a window. All handles are snib and key lockable from the inside only and are fixed in the centre of the locking style. Please indicate if you prefer a custom height lock/handle position. The sliding window is a reliable choice for design flexibility and can be combined with fixed panels. Sliding windows can be used to enhance a building's characteristics with a simple, economical design.

Features & Benefits
​​Signature Sliding Window
  • Choice of 67mm or 100mm wide "semi-commercial" frames
  • Double glazed options
  • Maximum frame height for full height sash is 2000mm - (Must incorporate low or high lites past this point with 100mm frames only)

  • Combination fixed, low or high lite windows available only on 100mm frames
  • Designs capable of 1, 2 or 4 sliding sashes, sliding from one end, each end, center bi parting or stacking*

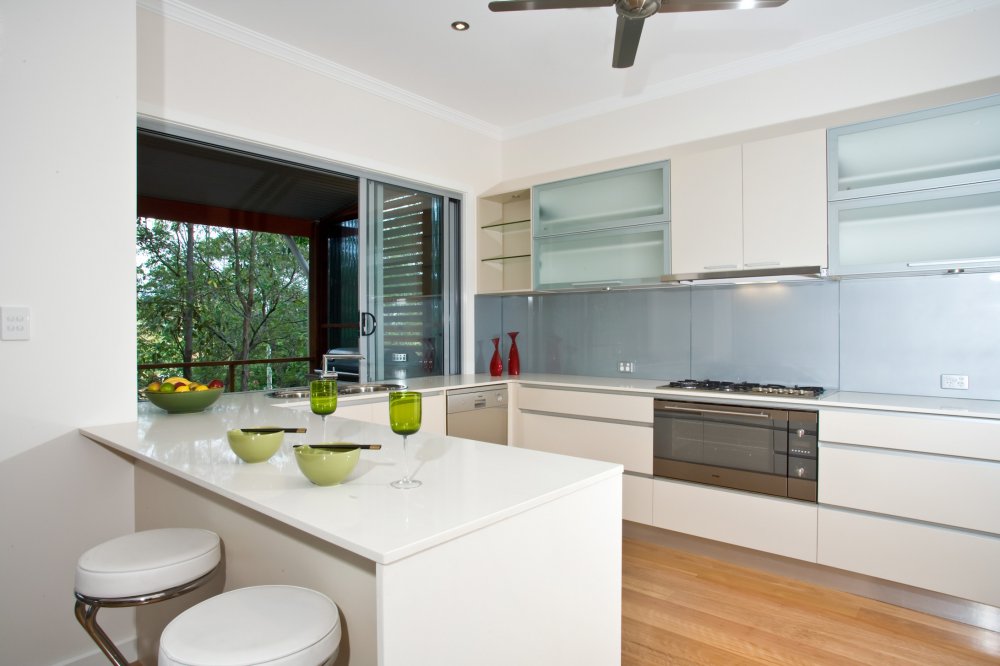

  • Ideal in servery situations between kitchen and outside entertainment areas with sliding servery screen (100mm frame only)
  • Integrated insect, safety and security screen options*
  • Contemporary design suited for architecturally creative projects
  • Clean finish and appearance thanks to concealed fixings and no visible sharp edges
  • Stylish handles are fitted with mortice lock for superior security. Internal side only, snib and key lockable
  • High performance roller system ensures smooth sliding action at all times
  • Santoprene seals for improved UV stability resulting in better weather resistance
  • Compatible with most cladding systems due to the location of building fins
  • Optional 40mm external fin / face fixing adaptor for flush mounting to exterior wall cladding (top and sides only - subsill recommended for bottom / sill)
  • State Public Works accredited
  • Tested to Australian standards
  • *not all designs are capable of fly screens
Performance Parameters

​​Signature Sliding Window

  • Frame Size  67mm / 100mm
  • Maximum Height 2000mm (without low or high lites)
  • Larger height subject to actual design limitations (100mm frames with low or high lites only)
  • Maximum Width  5400mm
  • Maximum Panel Width 1350mm
  • Maximum Panel Weight 24kgs 100kgs
  • Maximum Water Rating  600Pa
  • Maximum Wind Rating 6000Pa ULS
  • Maximum Acoustic Rating Rw33
  • Maximum Glass Thickness (single glazed) 12.76mm
  • Maximum Glass Thickness (double glazed-IGUs) 20mm
  • Maximum Bushfire Attack Level BAL 40

All sliding windows come with Statesman's 7 Year Warranty* and a 3 Year Moving Part Guarantee * Workmanship and Material - Subject to standard warranty terms and conditions.

Note: Subject to local variations, climate requirements, and confirmation of structural performance.
