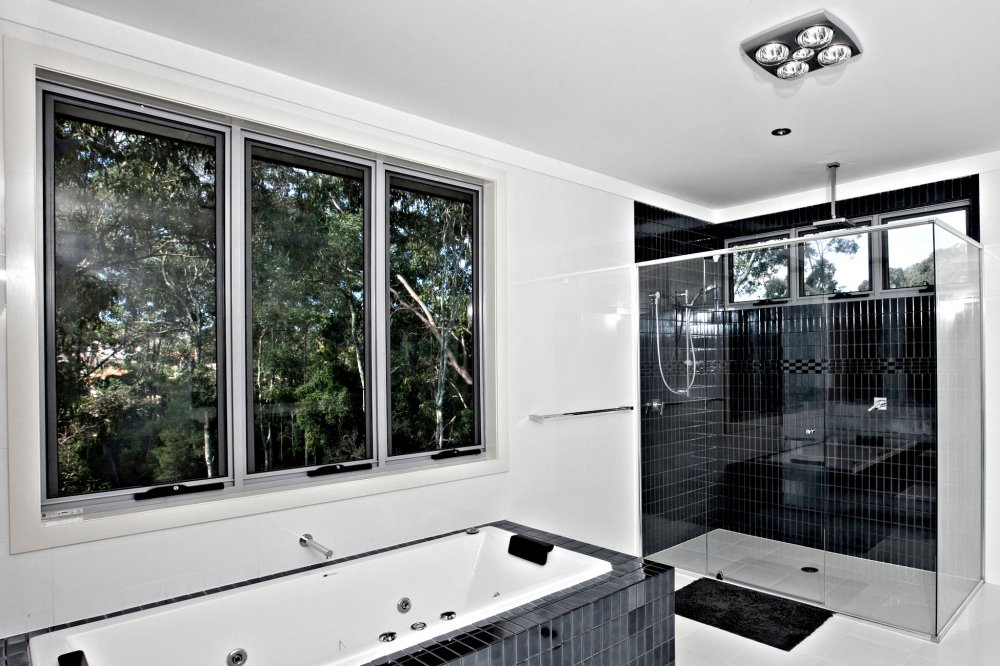

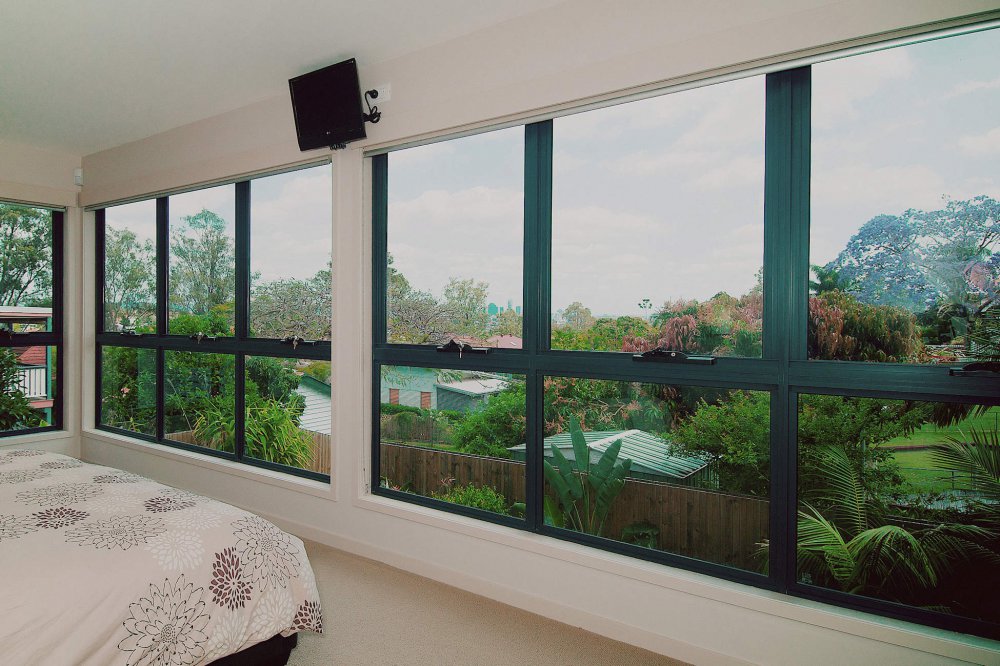

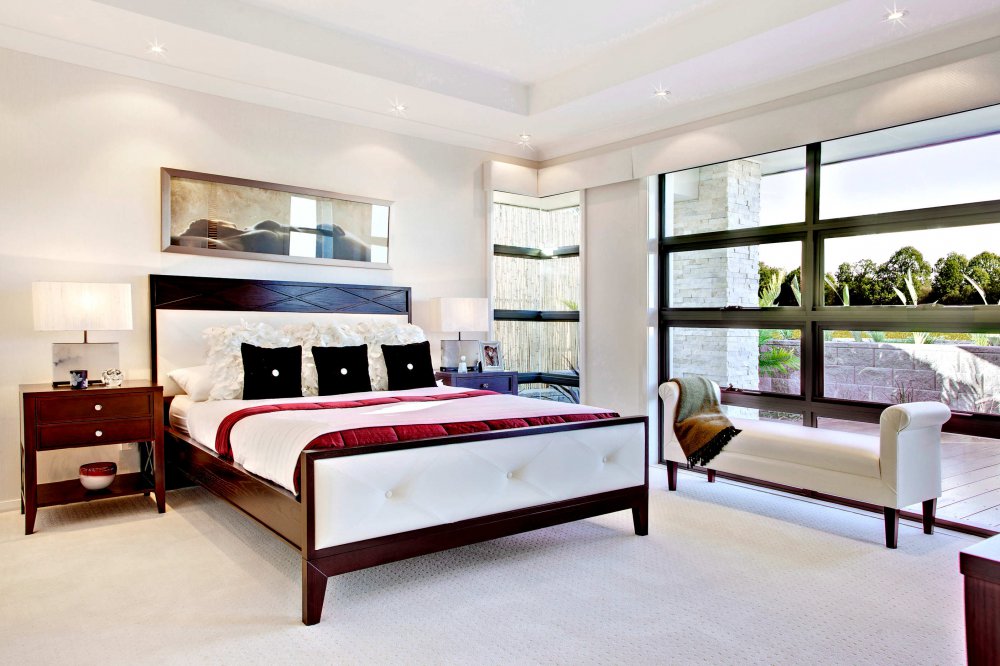

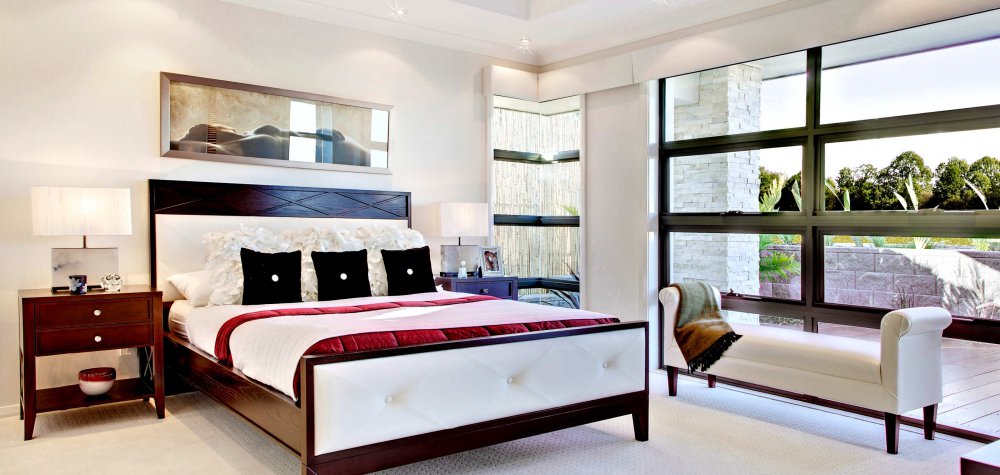

Essential Awning Windows

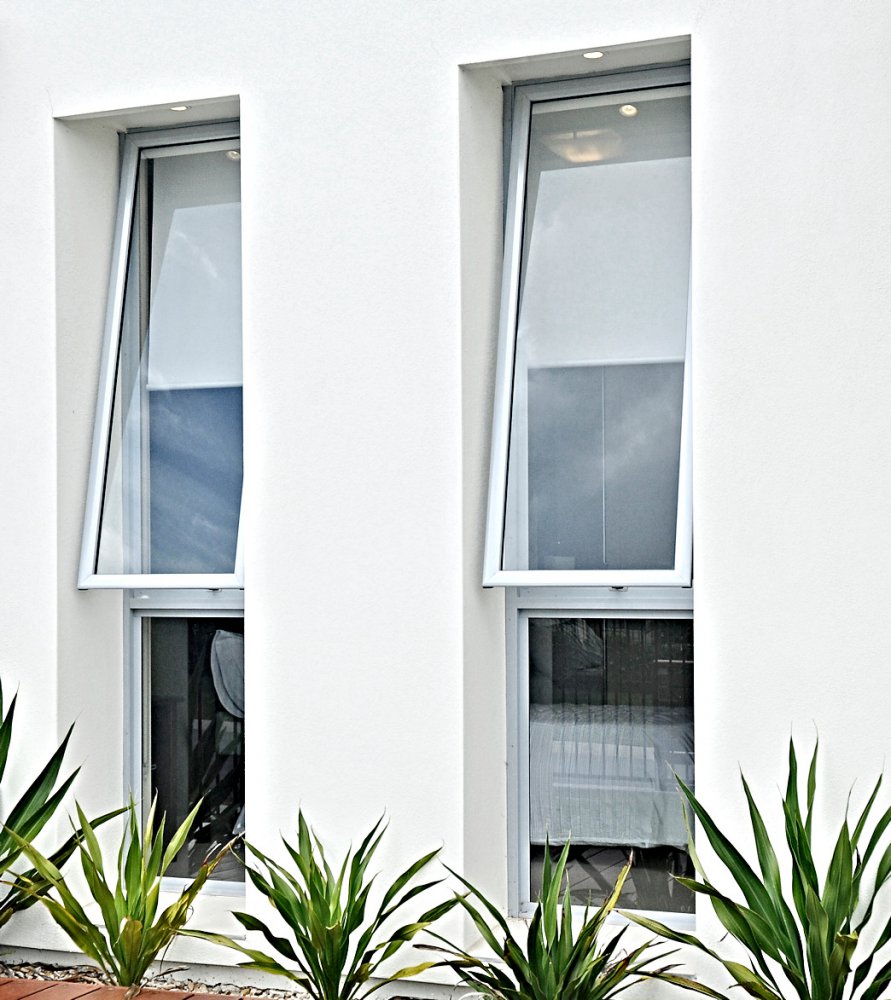

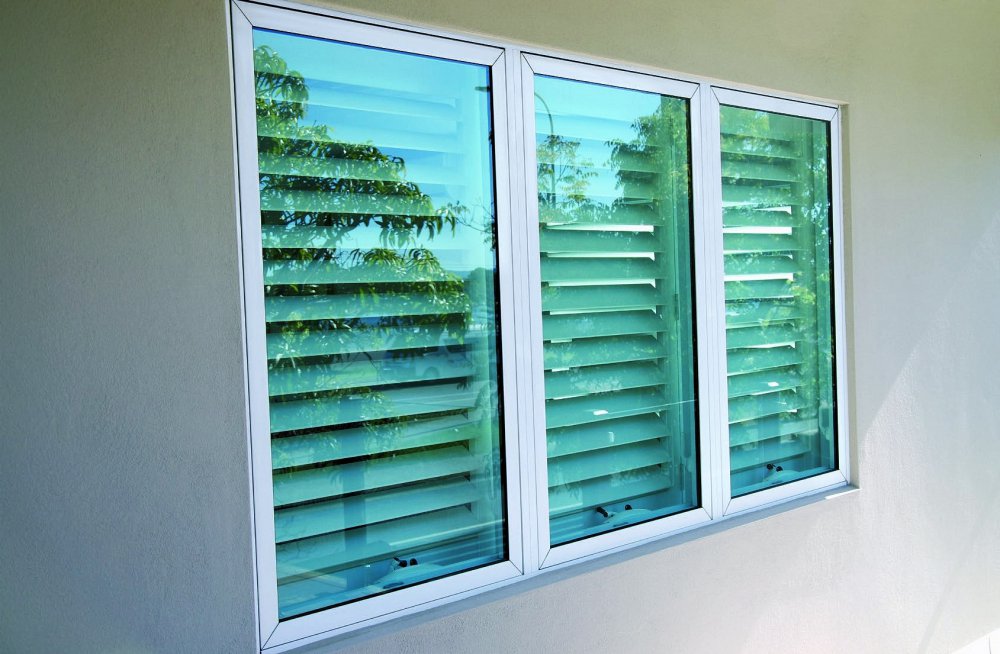

Launch Gallery Essential Awning Window w/42mm sash (external view)
Overview

Statesman's ever popular Essential awning windows provide a chunkier, stylish option to suit the traditional or contemporary home. Awning sashes are hung from the top within its 52mm wide main perimeter frame, opening outward with stainless steel chain locking winders as standard, letting air circulate freely. Tending to operate in reverse, the awning lets out more air than it lets in, which makes it perfect for kitchen & bathroom applications. The awning outperforms all other designs when it comes to weather penetration, as the sash is sealed tightly against the main frame with a compressed vinyl seal when closed tightly. The Essential awning is the most economical solution for domestic double glazing within our range.

Features & Benefits

Essential Awning Windows

  • Frame Size 52mm
  • Economy standard 33mm sash (single glazed only) or premium 42mm sash options (suitable for double glazing)
  • Functional & easy operation
  • Clean finish & appearance thanks to concealed fixings & no visible sharp edges
  • Integrated internally mounted screen track does not interfere with lockable winders
  • Integrated insect, safety & security screen options
  • Wide single & double glazing pockets for improved acoustic & thermal performance
  • High quality seals for better weather proofing performance
  • A variety of matching stainless steel chain locking winder colours
  • Compatible with most cladding systems due to the location of building fins
  • Optional 20mm or 40mm external fin / face fixing adaptor for flush mounting to exterior wall cladding
  • Tested to Australian standards
Performance Parameters

​​Essential Awning Windows

  • Frame Size 52mm
  • Maximum Height 2150mm / 2400mm (Single ‘A’ configuration only)
  • Maximum Panel Width 2150mm (without Cam handles)*
  • Maximum Panel Weight 32kgs (Frame hung) 74kgs (Friction stays)
  • Hardware can be upgraded to have twin chains for operation of larger sashes
  • Improved mitre joints create a consistent ‘picture frame’ look
  • Top hinged design for natural ventilation, even during light rain showers
  • Maximum Water Rating 600Pa
  • Maximum Wind Rating 4500Pa ULS
  • Maximum Acoustic Rating Rw35
  • Maximum Glass Thickness (single glazed) 12.76mm
  • Maximum Glass Thickness (double glazed - IGUs) 24mm
  • Maximum Bushfire Attack Level BAL 40
  • *all sizes subject to design limits

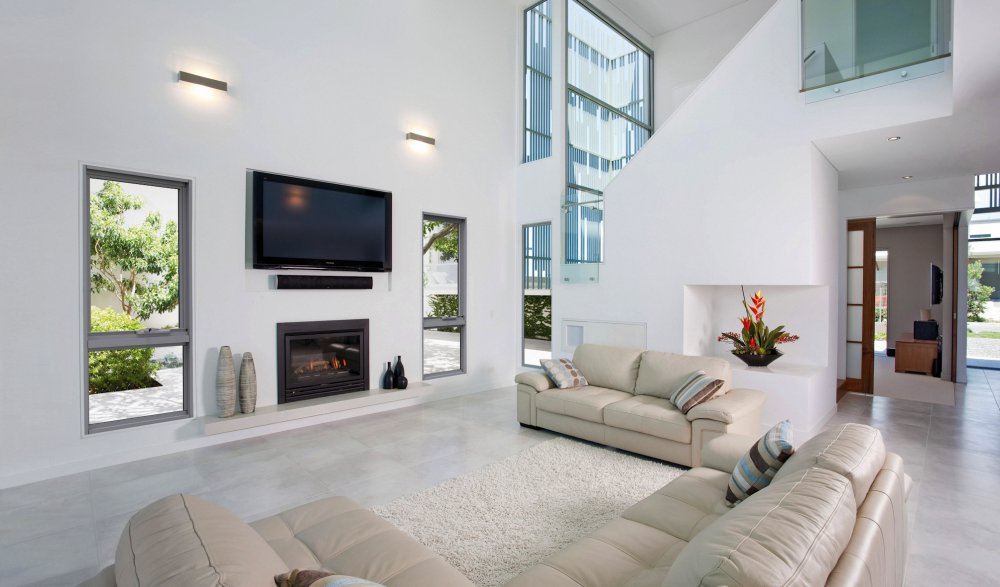

Signature Awning Windows

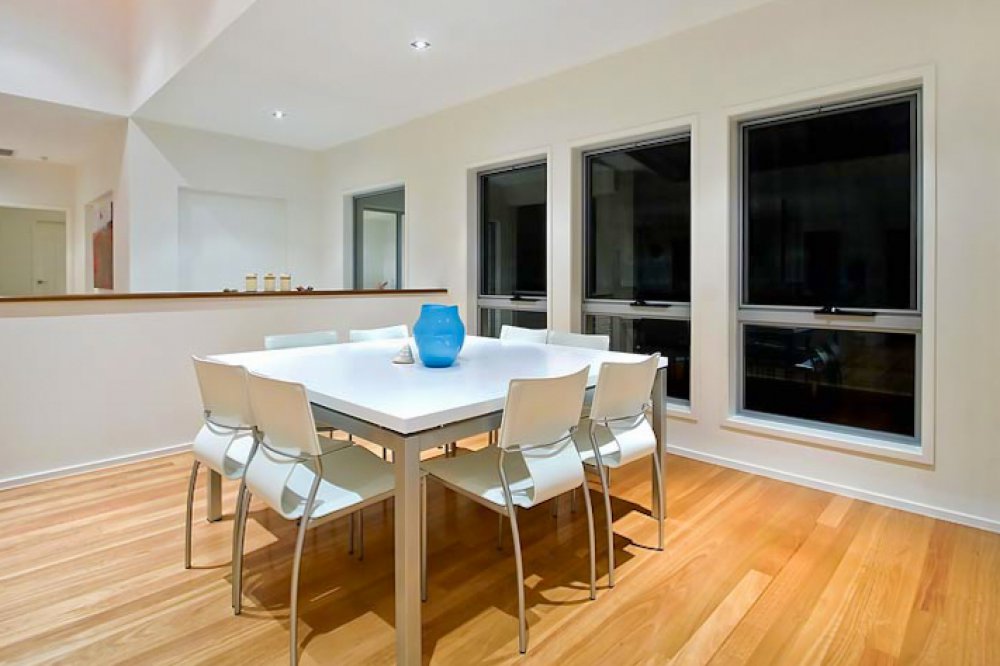

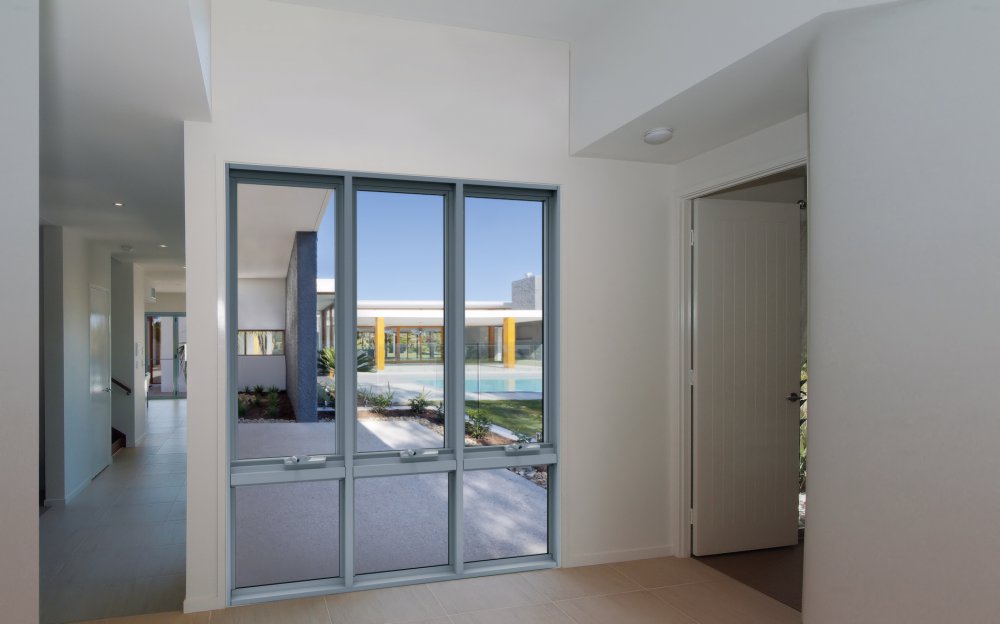

Launch Gallery Signature Awning Window with transom (flyscreens not shown)
Overview

Statesman's Signature Awning Windows feature a 100mm wide frame that is both modern and stylish, giving the appearance of a commercial product without the budget to accompany them. Accommodating double glazing as well as standard or LowE single glazing, extra large, oversized panels (*may need to be site glazed) and a choice of internal or external glazed fixed lites, along with premium stainless steel locking chain winders as standard. Awning sashes are hung from the top within its 100mm wide main perimeter frame, opening outward, letting air circulate freely. Tending to operate in reverse, the awning lets out more air than it lets in, which makes it perfect for kitchen and bathroom applications. The awning outperforms all other designs when it comes to weather penetration, as the sash is sealed tightly against the main frame with a compressed vinyl seal when closed tightly.

Features & Benefits

Signature Awning Window

  • Shares the clean, contemporary look of other Statesman Signature products
  • Large area of glass for an uncluttered and contemporary look
  • Modern, stylish and high quality hardware with heavy duty stainless steel chains as standard
  • Optional upgrade to twin winders for improved operation of the largest and heaviest sashes
  • A variety of matching locking winder colours
  • Integrated screening does not interfere with winder
  • Santoprene carbon seals for improved sealing and UV stability
Performance Parameters

Signature Awning Window

  • Frame size 100mm semi-commercial
  • Maximum panel height 2400mm
  • Maximum panel width 2150mm (without Cam handles)
  • Maximum panel weight 74kgs (Friction stay only)
  • Maximum water rating 600Pa
  • Maximum wind rating 4500Pa ULS
  • Maximum glass thickness 12.76mm (single glazed) 24mm (IGUs)
  • Maximum acoustic rating Rw36
  • Maximum bushfire attack level BAL 40
